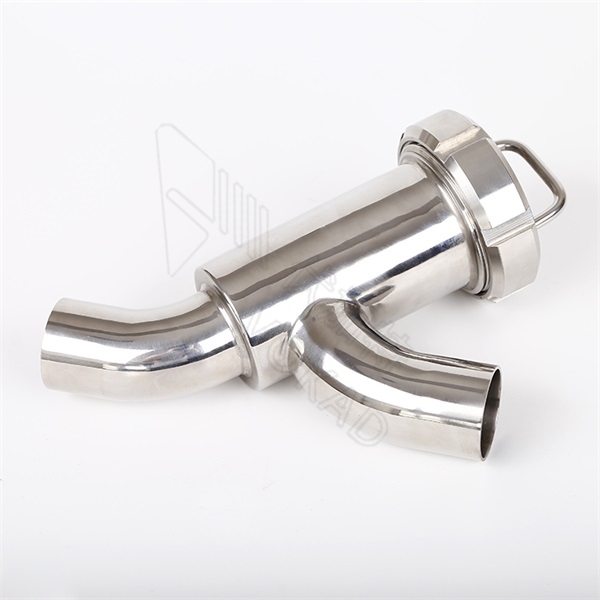

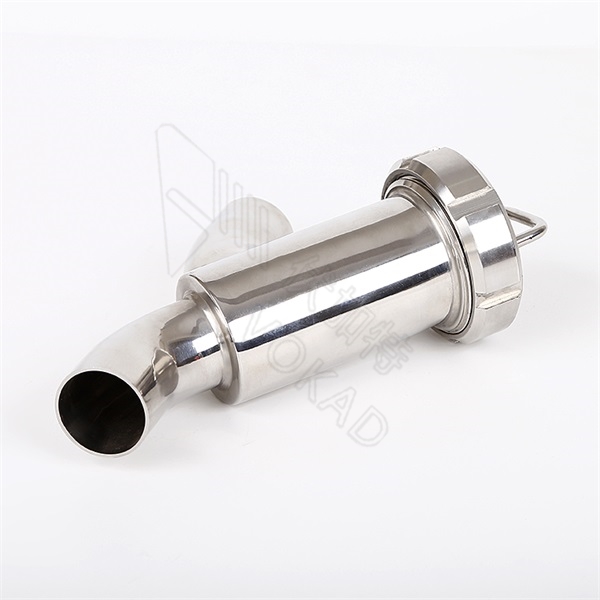

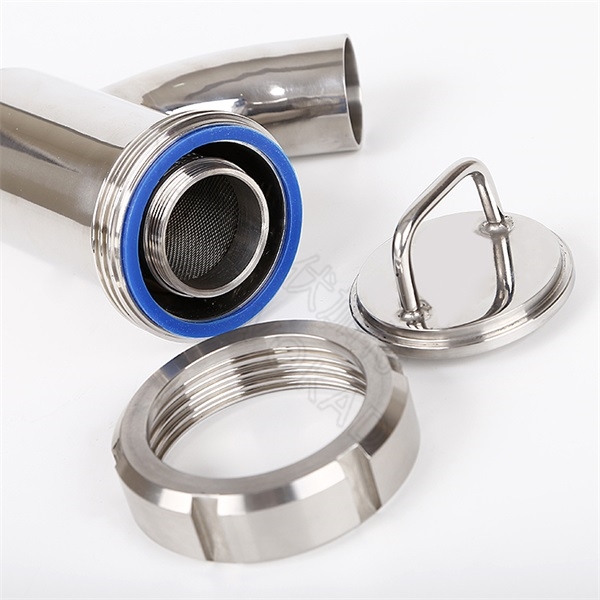

Hygenic Stainless Steel Elbow Y type strainer

Short Description:

Used to filter particles and solid object in the pipeline to prevent the damaging to pumps and equipment.

Technical parameters
Material: SS304, SS316L,SS904L
Size: 1”-4” or DN25-DN100
Max. pressure:
Gasket:
surface finish: Mirror polishing(180G, 240G, 400G) or Matt polishing

Product Detail

Technical parameters
Material: SS304, SS316L,SS904L
Size: 1”-4” or DN25-DN100
Body structure: straight type, angle type, y type etc.
Connection type:Welded, threaded, Tri-clamp, flanged, union-type available
Perforated Plate:0.5mm to 5mm
Diameter holes Wire Mesh Strainer:40 mesh to 500 mesh
Wedge Wire Strainer: 100 micron to 7900 micron Sintered Strainer 40 mesh to 500 mesh
Pressure range: 0-10bar
Surface:Mirror polishing(180G, 240G, 400G) or Matt polishing
Application: Food, beverage, beer,dairy, pharmacy, chemical industries etc.
