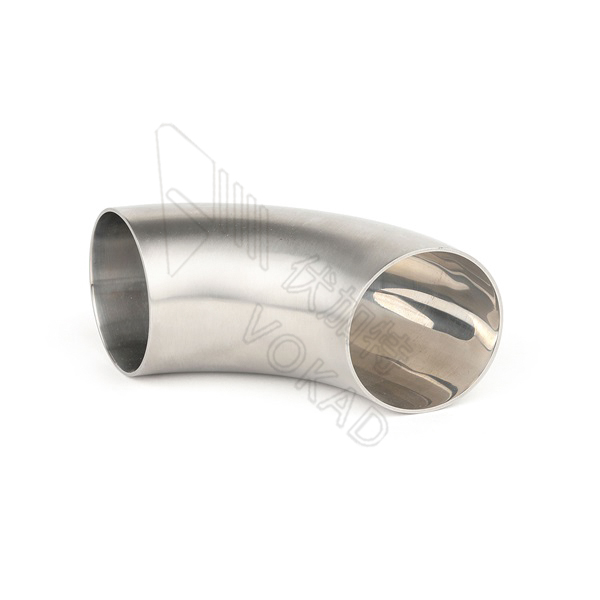

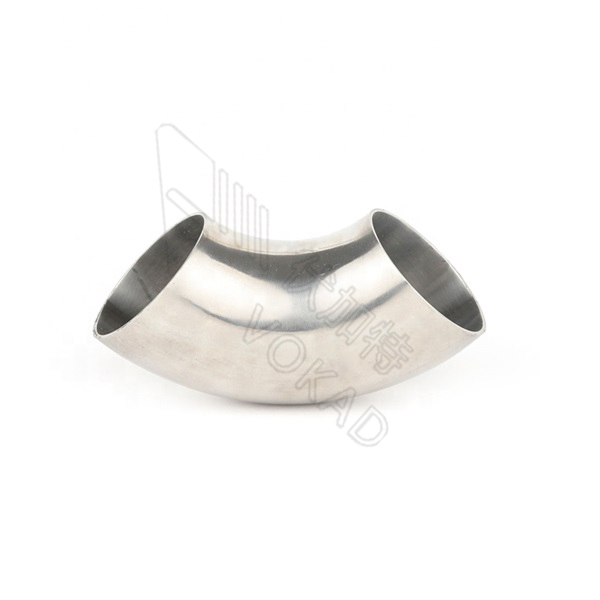

Sanitary welded 90 degree short elbow(2WCL)

Short Description:

Vokad supplies tubes and fittings in the sanitary range comply with DIN EN 10357, 3A-Sanitary, ISO 2037 and SMS standards. Vokad offers tubes, fittings such as elbow, tee, reducer, end cap in materia···


    • Technical parameters
    • Material: SS304, or SS316L
    • Size:
    • Max. pressure: 90°， 180°， 45°
    • Gasket:
    • surface finish: Ra ≤0.8μm. Mirror polish & Matt polish

Product Detail

Technical

Material: SS304, or SS316L

Elbow degree: 90°， 180°， 45°

Connection type: Welding ends, triclamp ends, union ends, male ends

Available Polishing: Hairline( Satinize 180g, 240g), Mirror(320g, 400g), Pickling or according customer request

Specification: DN10-DN300, 1/2”-12”

Surface finish: Ra ≤0.8μm. Mirror polish & Matt polish

Application: It is applied to the stainless steel pipeline system, which is used for milk ,food, juice, beer, pharmacy, etc.
