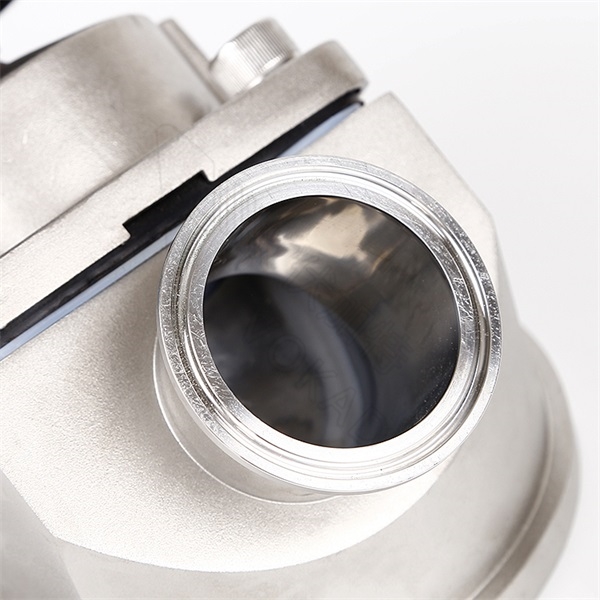

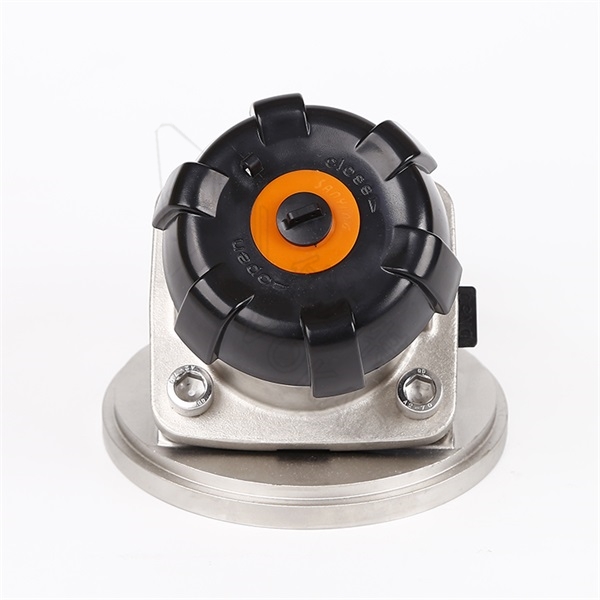

Sanitary Tank bottom diaphragm valve

Short Description:

Used to control fluid flow by regulating the area with which media can enter and exit the valve, effectively changing its speed and velocity. Valve bodies available in 2-way, T-type and tank bottom, b···


    • Technical parameters
    • Material: SS304 or SS316L
    • Size: 0.5” to 2.5”
    • Max. pressure:
    • Gasket:
    • surface finish: the outer surface of Ra is less than or equal to 0.5 m (SF1), The inner surface of Ra is less than or equal to 0.375 m (SF4)

Product Detail

Technical parameters

Material: SS304 or SS316L

Size:0.5” to 2.5”

Working temperature: -40℃ to +150℃

Type:Operate by handle and pneumatic by air actuator

 Max Pressure: 0-10bar (145psi)

Body type: Inline, T type, U type

Body material: 316L (casting, CF3M EN1.4409)

Seal material: EPDM+TFM, EPDM

Surface treatment: the outer surface of Ra is less than or equal to 0.5 m (SF1), The inner surface of Ra is less than or equal to 0.375 m (SF4)
